G5
|
Error Code |
Cause Analysis |
Troubleshooting / Solution |
|
Power indicator- flashing red LED 2 times with 2 seconds pause |
Unit may be defective |
Disconnect all the inputs and outputs of G5 and reboot. If that still not works, unit is considered defective. |
|
Power indicator- flashing red LED 3 times with 2 seconds pause |
1. Triggered headphone amplifier DC protection 2. Unit may be defective |
1. Try to turn down the volume level of G5 and reboot. 2. Disconnect all the inputs and outputs of G5 and reboot. If that still not works, unit is considered defective. |
Status indicator- flashing red LED |
Unit may be defective |
Disconnect all the inputs and outputs of G5 and reboot. If that still not works, unit is considered defective. |
|
Power indicator- yellow LED |
DFU mode may be accidently entered |
Reboot the G5 directly. |

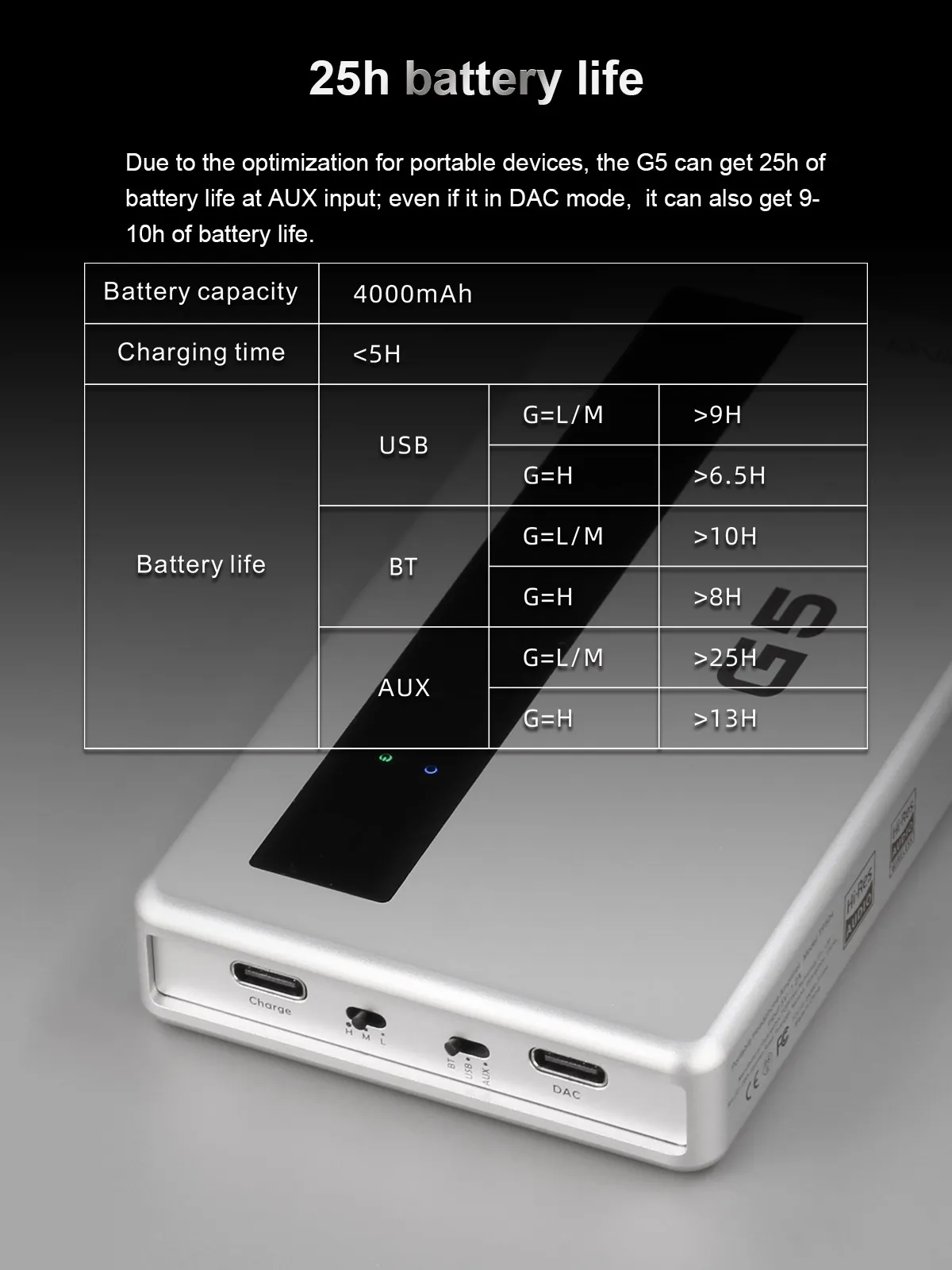

Power indicator does not on |
May be run out of battery |
Charge G5 firstly. |
|
Power indicator- yellow LED Status indicator- flashing red LED 1 time with 1 second pause |
Firmware upgrade failed |
Upgrade the firmware again. |
|
Power indicator- yellow LED Status indicator- flashing red LED 2 times with 1 second pause |
Incorrect firmware version |
Upgrade the correct version of firmware. |
